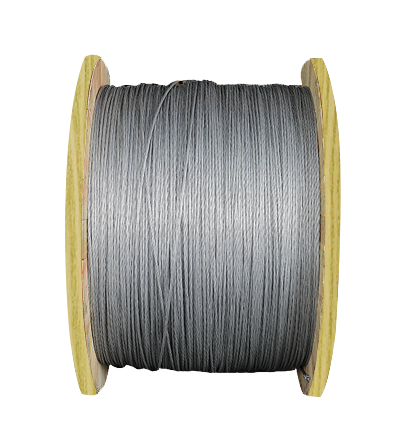

Aluminum Clad Steel Wire
Aluminum Clad Steel Wire
Application:
Apply with intensify reinforced, and twist ACS, optical fiber ground wire(OPGW)
Specification & Parameter |
Grade | Model | Nominal Dia | Min tensile strength | Stress at 1.0%Extension min, | Resistivity at 20℃ ≤ | ||||
Type | |||||||||
mm | Mpa | Mpa | Ωmm2/m | ||||||
LB14 | 2.25<d≤3.00 | 1590 | 1410 | 123.15 (14%IACS) | |||||
3.00<d≤3.50 | 1550 | 1380 | |||||||
3.50<d≤4.75 | 1520 | 1340 | |||||||
4.75<d≤5.50 | 1500 | 1270 | |||||||
LB20 | A | 1.24<d≤3.25 | 1340 | 1200 | 84.80 (20.3%IACS) | ||||
3.25<d≤3.45 | 1310 | 1180 | |||||||
3.45<d≤3.65 | 1270 | 1140 | |||||||
3.65<d≤3.95 | 1250 | 1100 | |||||||
3.95<d≤4.10 | 1210 | 1100 | |||||||
4.10<d≤4.40 | 1180 | 1070 | |||||||
4.40<d≤4.60 | 1140 | 1030 | |||||||
4.60<d≤4.75 | 1100 | 1000 | |||||||
4.75<d≤5.50 | 1070 | 1000 | |||||||
B | 1.24<d≤5.50 | 1320 | 1100 | ||||||
LB23 | 2.50<d≤5.00 | 1220 | 980 | 74.96(23%IACS) | |||||
LB27 | 2.50<d≤5.00 | 1080 | 800 | 63.86(27%IACS) | |||||
LB30 | 2.50<d≤5.00 | 880 | 650 | 57.47(30%IACS) | |||||
LB35 | 2.50<d≤5.00 | 810 | 590 | 49.26(35%IACS) | |||||
LB40 | 2.50<d≤5.00 | 680 | 500 | 43.10(40%IACS) | |||||
The physical constant of AS. Wires |
Conductivity %LACS | Resistivity at 20℃nΩ.m≤ | Modulus of Elasticity Gpa | Coefficient of Linear expansion K-1 | Coating thickness | Ratio of cross Sectional area | |
ATT | MAT | |||||
14 | 123.15 | 170 | 12.0×10-6 | 3.4 | 2.2 | 13:87 |
20.3 | 84.80 | 162 | 12.6×10-6 | 6.7 | 5.0 | 25:75 |
23 | 74.96 | 150 | 12.9×10-6 | 8.2 | 5.5 | 30:70 |
27 | 63.86 | 140 | 13.4×10-6 | 10.25 | 7.0 | 37:63 |
30 | 57.47 | 132 | 13.8×10-6 | 12.25 | 7.5 | 43:57 |
35 | 49.26 | 122 | 14.5×10-6 | 15.4 | 10.3 | 52:48 |
40 | 43.10 | 109 | 15.5×10-6 | 19.2 | 12.5 | 62:38 |
American standard of aluminum clad steel wire |
Approximate Properties of Hard-drawn 20.3% Conductivity Aluminum-Clad steel Wire | ||||||||||||||||
Nominal Dia | Size | Calculated cross sectional area | Min tensile strength | Calculated breaking load | Mincoating thickness | D.C resistance at 20℃≤ | Weight | |||||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | ||||
0.2043 | 5.189 | 4 | 21.150 | 41740 | 1070 | 155000 | 22.60 | 0.259 | 1.222 | 4.009 | 139.32 | 93.63 | ||||
0.1880 | 4.775 | 4 | 17.908 | 35342 | 1100 | 160000 | 19.70 | 0.239 | 1.443 | 4.735 | 118.01 | 79.31 | ||||
0.1819 | 4.620 | 5 | 16.767 | 33090 | 1140 | 165000 | 18.10 | 0.231 | 1.541 | 5.056 | 110.48 | 74.25 | ||||
0.1729 | 4.392 | 5 | 15.150 | 29899 | 1170 | 170000 | 17.73 | 0.220 | 1.706 | 5.597 | 99.84 | 67.10 | ||||
0.1620 | 4.115 | 6 | 13.296 | 26240 | 1210 | 175000 | 16.00 | 0.206 | 1.943 | 6.375 | 87.61 | 58.88 | ||||
0.1549 | 3.934 | 6 | 12.155 | 23989 | 1240 | 180000 | 15.07 | 0.197 | 2.126 | 6.976 | 80.10 | 53.83 | ||||
0.1443 | 3,665 | 7 | 10.549 | 20820 | 1280 | 185000 | 13.50 | 0.183 | 2.450 | 8.038 | 69.47 | 46.69 | ||||
0.1369 | 3.477 | 7 | 9.495 | 18739 | 1310 | 190000 | 12.44 | 0.174 | 2.722 | 8.931 | 62.57 | 42.05 | ||||
0.1285 | 3.264 | 8 | 8.366 | 16510 | 1340 | 195000 | 11.20 | 0.163 | 3.089 | 10.135 | 55.15 | 37.03 | ||||
0.1144 | 2.906 | 9 | 6.633 | 13090 | 1340 | 195000 | 8.92 | 0.145 | 3.896 | 12.783 | 43.70 | 29.37 | ||||
0.1019 | 2.588 | 10 | 5.260 | 10380 | 1340 | 195000 | 7.07 | 0.129 | 4.912 | 16.116 | 34.66 | 23.29 | ||||
0.0907 | 2.304 | 11 | 4.170 | 8230 | 1340 | 195000 | 5.61 | 0.115 | 6.194 | 20.323 | 27.48 | 18.47 | ||||
0.0808 | 2.052 | 12 | 3.309 | 6530 | 1340 | 195000 | 4.45 | 0.103 | 7.811 | 25.628 | 21.80 | 14.65 |
American standard of aluminum clad steel wire |
铝包钢线美国标准 American standard of aluminum clad steel wire ASTM B415 | ||||||||||||||
Approximate Properties of Hard-drawn 27% Conductivity Aluminum-Clad steel Wire | ||||||||||||||
Nominal Dia | Size | Calculated cross sectional area | Min tensile strength | Calculated | Mincoating thickness | D.C resistance at 20℃≤ | Weight | |||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | ||
0.2043 | 5.189 | 4 | 21.150 | 41740 | 862 | 125000 | 18.20 | 0.363 | 0.920 | 3.019 | 124.99 | 84.00 | ||
0.1880 | 4.775 | 4 | 17.908 | 35342 | 889 | 129000 | 15.92 | 0.334 | 1.087 | 3.566 | 105.83 | 71.12 | ||
0.1819 | 4.620 | 5 | 16.767 | 33090 | 917 | 133000 | 15.40 | 0.323 | 1.161 | 3.809 | 99.09 | 66.59 | ||
0.1729 | 4.392 | 5 | 15.150 | 29899 | 945 | 137000 | 14.32 | 0.307 | 1.285 | 4.215 | 89.54 | 60.17 | ||
0.1620 | 4.115 | 6 | 13.296 | 26240 | 972 | 141000 | 12.90 | 0.288 | 1.464 | 4.803 | 78.57 | 52.80 | ||
0.1549 | 3.934 | 6 | 12.155 | 23989 | 1000 | 145000 | 12.16 | 0.275 | 1.601 | 5.254 | 71.84 | 48.28 | ||
0.1443 | 3,665 | 7 | 10.549 | 20820 | 1034 | 150000 | 10.90 | 0.257 | 1.845 | 6.053 | 62.33 | 41.89 | ||
0.1369 | 3.477 | 7 | 9.495 | 18739 | 1062 | 154000 | 10.08 | 0.243 | 2.050 | 6.726 | 56.12 | 37.71 | ||
0.1285 | 3.264 | 8 | 8.366 | 16510 | 1076 | 156000 | 9.00 | 0.228 | 2.326 | 7.632 | 49.43 | 33.22 | ||
0.1144 | 2.906 | 9 | 6.633 | 13090 | 1076 | 156000 | 7.13 | 0.203 | 2.934 | 9.626 | 39.19 | 26.34 | ||
0.1019 | 2.588 | 10 | 5.260 | 10380 | 1076 | 156000 | 5.66 | 0.181 | 3.700 | 12.140 | 31.08 | 20.89 | ||
0.0907 | 2.304 | 11 | 4.170 | 8230 | 1076 | 156000 | 4.48 | 0.161 | 4.667 | 15.312 | 24.63 | 16.55 | ||
0.0808 | 2.052 | 12 | 3.309 | 6530 | 1076 | 156000 | 3.56 | 0.144 | 5.882 | 19.299 | 19.55 | 13.14 |
American standard of aluminum clad steel wire |
American standard of aluminum clad steel wire ASTM B415 | ||||||||||||||
Approximate Properties of Hard-drawn 30% Conductivity Aluminum-Clad steel Wire | ||||||||||||||
Nominal Dia | Size | Calculated cross sectional area | Min tensile strength | | D.C resistance at 20℃≤ | Weight | ||||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | ||
0.2043 | 5.189 | 4 | 21.150 | 41740 | 703 | 102000 | 14.90 | 0.389 | 0.828 | 2.717 | 118.64 | 79.73 | ||
0.1880 | 4.775 | 4 | 17.908 | 35342 | 731 | 106000 | 13.09 | 0.358 | 0.978 | 3.209 | 100.46 | 67.51 | ||
0.1819 | 4.620 | 5 | 16.767 | 33090 | 758 | 110000 | 12.70 | 0.347 | 1.045 | 3.429 | 94.06 | 63.21 | ||
0.1729 | 4.392 | 5 | 15.150 | 29899 | 786 | 114000 | 11.91 | 0.329 | 1.156 | 3.793 | 84.99 | 57.12 | ||
0.1620 | 4.115 | 6 | 13.296 | 26240 | 786 | 118000 | 10.50 | 0.309 | 1.317 | 4.321 | 74.59 | 50.13 | ||
0.1549 | 3.934 | 6 | 12.155 | 23989 | 814 | 122000 | 9.89 | 0.295 | 1.441 | 4.728 | 68.19 | 45.83 | ||
0.1443 | 3,665 | 7 | 10.549 | 20820 | 841 | 126000 | 8.87 | 0.275 | 1.660 | 5.446 | 59.18 | 39.77 | ||
0.1369 | 3.477 | 7 | 9.495 | 18739 | 869 | 128000 | 8.25 | 0.261 | 1.845 | 6.053 | 53.27 | 35.80 | ||
0.1285 | 3.264 | 8 | 8.366 | 16510 | 883 | 128000 | 7.38 | 0.245 | 2.094 | 6.870 | 46.95 | 31.55 | ||
0.1144 | 2.906 | 9 | 6.633 | 13090 | 883 | 128000 | 5.85 | 0.218 | 2.642 | 8.668 | 37.20 | 25.00 | ||
0.1019 | 2.588 | 10 | 5.260 | 10380 | 883 | 128000 | 4.47 | 0.194 | 3.329 | 10.922 | 29.52 | 19.84 | ||
0.0907 | 2.304 | 11 | 4.170 | 8230 | 883 | 128000 | 3.68 | 0.173 | 4.203 | 13.79 | 23.38 | 15.71 | ||
0.0808 | 2.052 | 12 | 3.309 | 6530 | 883 | 128000 | 2.92 | 0.154 | 5.295 | 17.373 | 18.57 | 12.48 |
American standard of aluminum clad steel wire |
American standard of aluminum clad steel wire ASTM B415 | ||||||||||||||
Approximate Properties of Hard-drawn 40% Conductivity Aluminum-Clad steel Wire | ||||||||||||||
Nominal Dia | Size | Calculated cross sectional area | Min tensile strength | D.C resistance at 20℃≤ | Weight | |||||||||
in. | mm | AWG | mm2 | cmils | Mpa | psi | kn | mm | Ω/1000ft | Ω/km | kg/km | 1b/1000ft | ||
0.2043 | 5.189 | 4 | 21.150 | 41740 | 552 | 80000 | 11.70 | 0.649 | 0.621 | 2.038 | 98.10 | 65.93 | ||
0.1880 | 4.775 | 4 | 17.908 | 35342 | 579 | 84000 | 10.37 | 0.597 | 0.734 | 2.407 | 83.09 | 55.84 | ||
0.1819 | 4.620 | 5 | 16.767 | 33090 | 607 | 88000 | 10.20 | 0.578 | 0.784 | 2.572 | 77.78 | 52.27 | ||
0.1729 | 4.392 | 5 | 15.150 | 29899 | 634 | 92000 | 9.61 | 0.549 | 0.867 | 2.845 | 70.30 | 47.24 | ||
0.1620 | 4.115 | 6 | 13.296 | 26240 | 662 | 96000 | 8.80 | 0.514 | 0.988 | 3.242 | 61.66 | 41.44 | ||
0.1549 | 3.934 | 6 | 12.155 | 23989 | 676 | 96000 | 8.22 | 0.492 | 1.081 | 3.546 | 56.40 | 37.90 | ||
0.1443 | 3,665 | 7 | 10.549 | 20820 | 676 | 98000 | 7.13 | 0.458 | 1.245 | 4.085 | 48.93 | 32.88 | ||
0.1369 | 3.477 | 7 | 9.495 | 18739 | 686 | 98000 | 6.51 | 0.435 | 1.383 | 4.539 | 44.06 | 29.61 | ||
0.1285 | 3.264 | 8 | 8.366 | 16510 | 686 | 99500 | 5.74 | 0.408 | 1.571 | 5.154 | 38.81 | 26.08 | ||
0.1144 | 2.906 | 9 | 6.633 | 13090 | 686 | 99500 | 4.55 | 0.363 | 1.981 | 6.500 | 30.77 | 20.68 | ||
0.1019 | 2.588 | 10 | 5.260 | 10380 | 686 | 99500 | 3.61 | 0.323 | 2.498 | 8.196 | 24.40 | 16.40 | ||
0.0907 | 2.304 | 11 | 4.170 | 8230 | 686 | 99500 | 2.86 | 0.288 | 3.151 | 10.338 | 19.33 | 12.99 | ||
0.0808 | 2.052 | 12 | 3.309 | 6530 | 686 | 99500 | 2.27 | 0.257 | 3.971 | 13.029 | 15.36 | 10.32 |
Australia standard of aluminum Clad steel wire |
Diameter | Cross section
mm2 | Unit length Weight kg/km | Min breaking load kN | Min tensile Strength MPa | Resistivity at 20℃ Ω/km≤ | ||
Norminal | Max | Min | |||||
2.75 | 2.791 | 2.709 | 5.940 | 39.1 | 7.96 | 1340 | 14.3 |
3.00 | 3.045 | 2.955 | 7.069 | 46.6 | 9.47 | 1340 | 12.0 |
3.25 | 3.299 | 3.201 | 8.296 | 54.7 | 11.1 | 1340 | 10.2 |
3.75 | 3.806 | 3.694 | 11.04 | 72.8 | 13.8 | 1250 | 7.70 |
4.25 | 4.313 | 4.186 | 14.19 | 93.5 | 16.7 | 1180 | 5.98 |
1.Application: Apply with intensify reinforced, and twist ACS, optical fiber ground wire(OPGW)
2.Standards: GB/T17937 , ASTM B415 , ASTM B502, AS1222.2 , IEC61232 |
